Group e

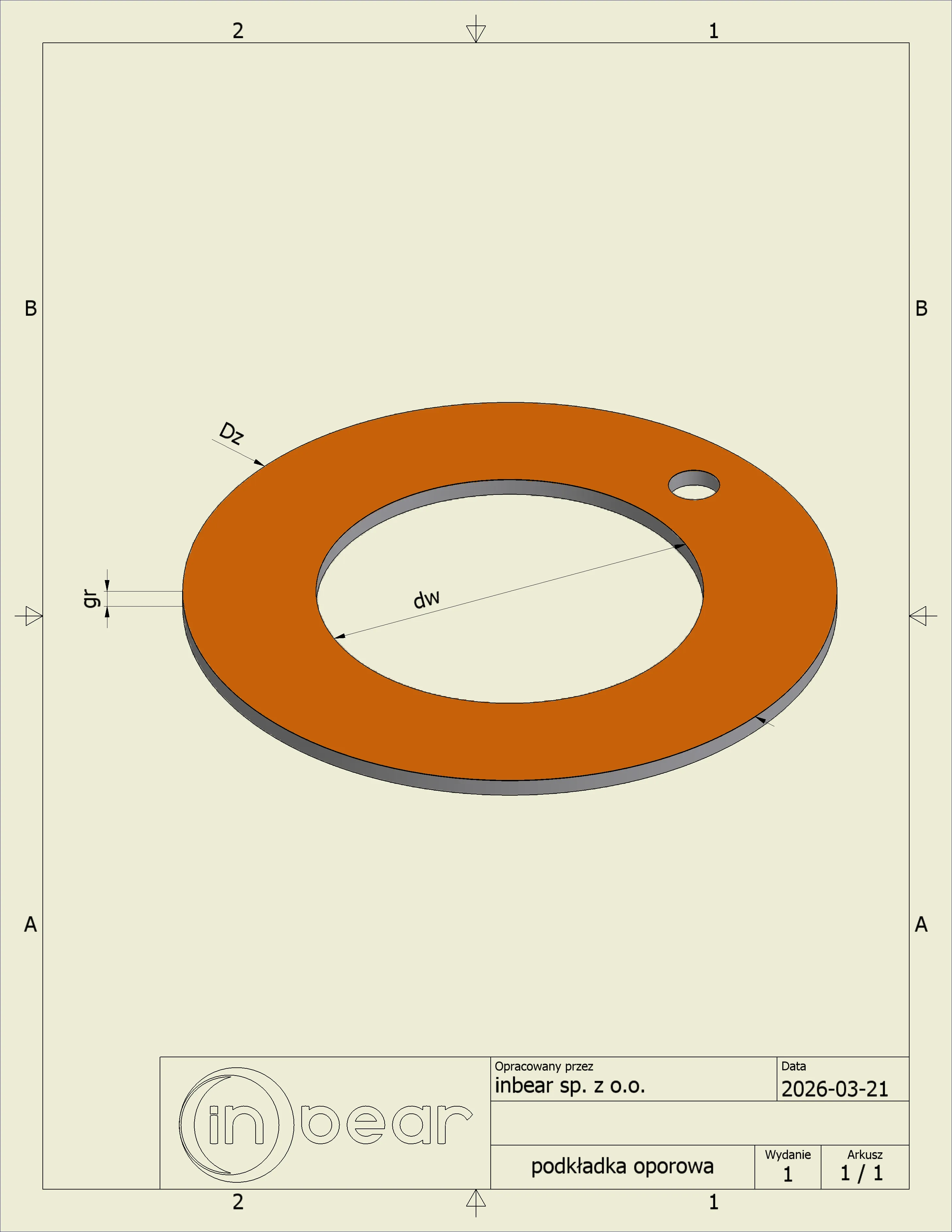

Trust washers POM
Characteristics
POM is used in applications with moderate load and temperature requirements, primarily as a thrust washer or spacer. Applications include agriculture, transport, food, textile, automotive and chemical industries.
Materials
KA®Others
Downloads
View range – Trust washers POMOperating conditions
Dry Poor/not recommended
Oil Good
Grease Very good
Water Poor/not recommended
Product form
Delivered as washers according to type series.
Parameters
Static load [MPa]
20
0 150 300
Speed dry [m/s]
1,5
0 2.5 5
Friction coefficient lubricated
0,08–0,15
0 0.25 0.5
Dynamic load [MPa]
10
0 150 300
Friction coefficient dry
0,15–0,30
0 0.25 0.5
Operating temperature [°C]
-40 do +80
-200 300 800
Housing fit H7
Shaft fit f7
